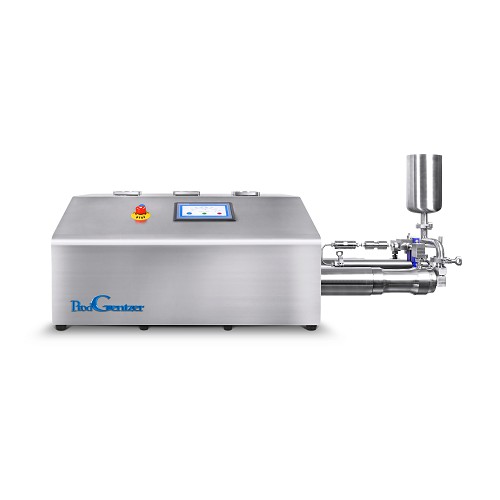

ProdGenizer (Dual Pump)

Description: Pilot Scale High Pressure Homogenizer with Dual Pump for continuous pressure up to 45,000psi
Référence du produit: Cat.ProdGenizer
    Choisissez l’information que vous besoinX
  • Pressure:
    12,000psi 15,000psi 20,000psi 25,000psi 30,000psi 35,000psi 40,000psi 45,000psi
  • Flow Rate:
    30L/hr 35L/hr 40L/hr 50L/hr 60L/hr 80L/hr
  • Option: Heat Exchanger:
    HPE-350 HPE-450
  • Voltage:
    380V 415-440V 460-480V
  • Warranty:
    Standard 1 year 2 year 3 year 4 year 5 year
  • IQ/OQ Installation and Operational Qualification:
    N/A IQ/OQ
Frais de transport:
Temps prévu à arriver:
Choisissez votre pay/région pour la livraison
  • description
  • How to use
Description: Production Scale High Pressure Homogenizer with Dual Pump for continuous pressure up to 45,000psi

Nanodispersions, nanoemulsions and nanotube, Graphene,
Cell Disruption,
Micro/nanoencapsulation in polymers, liposomes and oils,
Solid dispersion and suspension, Deagglomeration


Energy efficient, 1/2 energy loss of the most homogenizers
Small (Integrated design deliver the light weight and small dimensions
Smart (Programming control systems confer diligent functions)
Silent (Noiseless performance with high energy efficiency)
Strong (More than 100L/hr at 20,000 psi)
CE compliant and RoHs compliant

Catalog No. ProGenizer10K PG15K PG20K PG25K PG30K PG45K
Flow rate 120L/hr 120L/hr 80L/hr 80L/hr 60L/hr 50L/hr
Min. Sample Size 250ml 200ml 100ml 100ml 100ml 100ml
Max. Pressure 10,000psi 15,000psi 20,000psi 25,000psi 30,000psi 45,000psi
Dimensions(cm) 140 × 70 × 40    140 × 70 × 40    140 × 70 × 40     140 × 70 × 40    140 × 70 × 40     140 × 70 × 40
Weight 200 kg 200 kg 200 kg 200 kg 200 kg 200 kg
Max. Temp. 80ºC (176ºF)
Power 380V/430V
Sterilizing CIP/SIP
Application Nano emulsion, Fat emulsion, Liposome, Cell Disruption, Nano dispersion, Deagglomeration
Features Dual pump for continuous pressure, Digital display of pressure
Standard Features
Parts Y-type Diamond interaction chamber with cooling option
Control System High pressure programming control systems®: Touch Screen, Speed control, Auto stop control by volume, time, pressure or temperature, settable volume control as low as 1ml, display of flow rate and time, overload protection
Pressure Gauge Electric
Inlet type Tri-clamp or Luer
Outlet type Tri-clamp or Luer
Feed Reservoir 500ml SUS316 Cylinder, online
Collector Reservoir 500ml SUS316 Cylinder, online
Product material 316L stainless steel, Tungsten Carbide, Viton, Teflon
Material standard Pharmaceutical Grade, FDA, GMP
Warranty 1 year against any manufacturing defects
Option Features
Parts High Pressure Extruders, Homogenizing valves two stages, Heat Exchanger
Control System Tradition mechanical control: Speed, start, stop control
Detector Pressure gauge, Pressure transducer, Temperature transducer
Outlet type Tri-clamp or Luer
Feed Reservoir 1 liter, 2 liter stainless steel open reservoir; 2 liter, 5 liter pressurized stainless steel reservoir; Tank or Online
Collector Reservoir 1000ml, 2000ml Cylinder or Online
Cylinder Titanium High pressure Cylinder (Resistant to strong acid and base)
